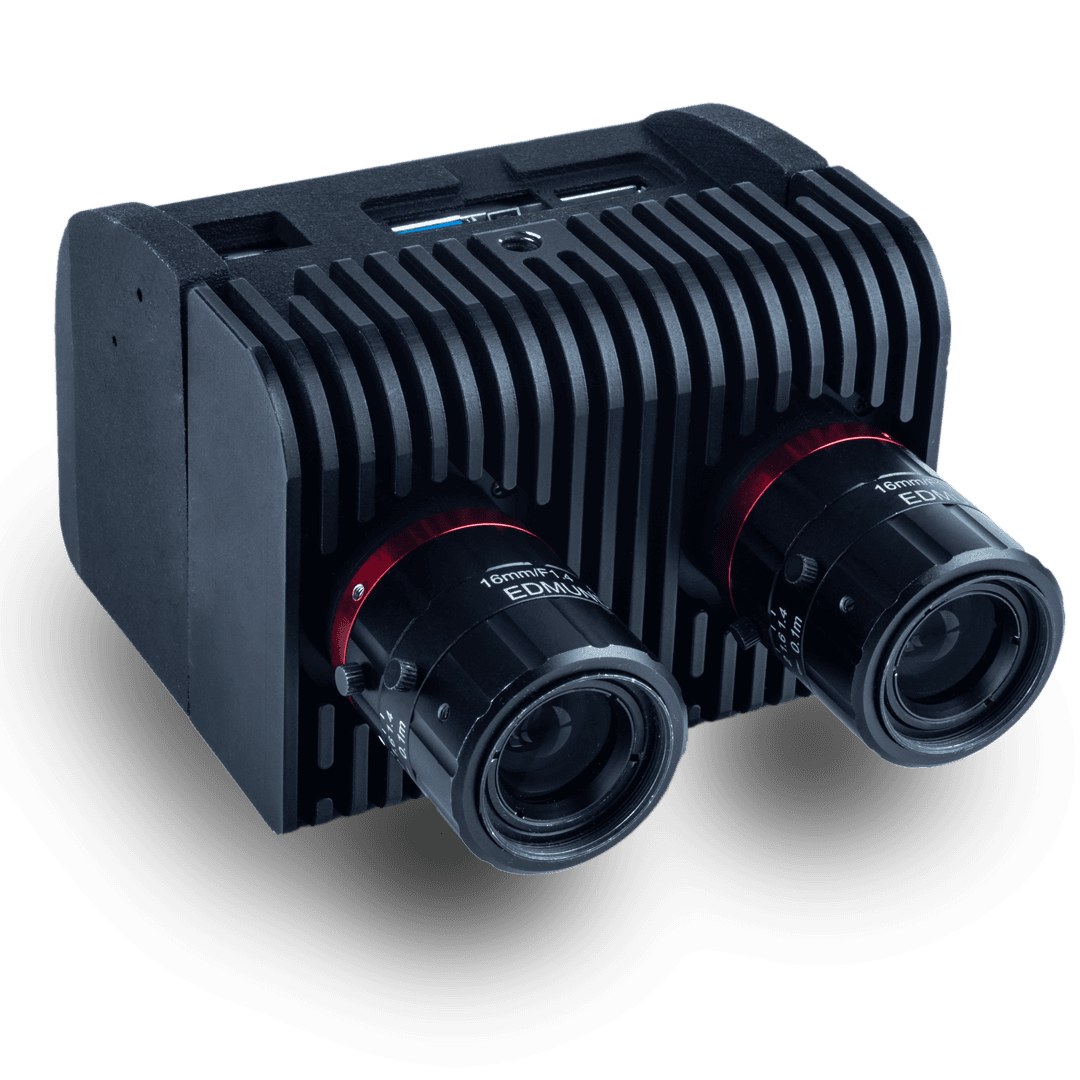

imec SNAPSHOT UAV VIS+NIR
How can a spectral camera become an analyzing tool in situations where the motion is not linear and perfectly controlled? This payload can help you develop a fully integrated solution that will make the acquisition of high quality spectral data on a flight mode easy and fast. The two embedded snapshot imagers VIS and RedNIR enable a user-friendly approach with real-time acquisition, processing and down-streaming of the application data at video rate from drone-based systems, focusing only on the application and research.
This UAV platform is compatible with the DJI M600 Pro and it can be connected in one click. Users can modify it in any way required for the integration into other flight controllers. It can be used as a development tool for hardware and software to end up in a complete UAV solution. Different arrangements and new ideas can be derived from utilizing this technology platform for drone-like applications such as precision agriculture and environment sensing.
spatial resolution
2 x 2048 x1088 px
spectral resolution
31 bands
spectral range
460 nm - 900 nm
acquisition speed
2 x 20 fps
Applications
-
precision agriculture
-
forestry management
-
disaster management
-
security & surveillance
-
predictive maintenance
-
process monitoring
-
general spectral imaging in outdoor environments
The software specifications are only applicable when the snapshot UAV is mounted into the DJI M600 Pro. Integration to a different flight controller requires custom software.
spatial resolution
spectral resolution
spectral range
FWHM (full width at half maximum)
pixel pitch
acquisition speed
dynamic range
gimbal
mechanical dimensions
weight
embedded hardware
optics
software
- ground control application compatible with DJI Matrice 600 Pro
- RAW frames acquisition control for local storage at videorate
- saturation detection
- after-flight software pipeline (Windows)
- stitched hyperspectral cube of large field (radiometricly corrected)
- one large field stiched cube from both sensors
- geo-tagged information
- HSI STUDIO software for hypercube visualization and classification
