/Cameras/XIMEA SNAPSHOT NIR

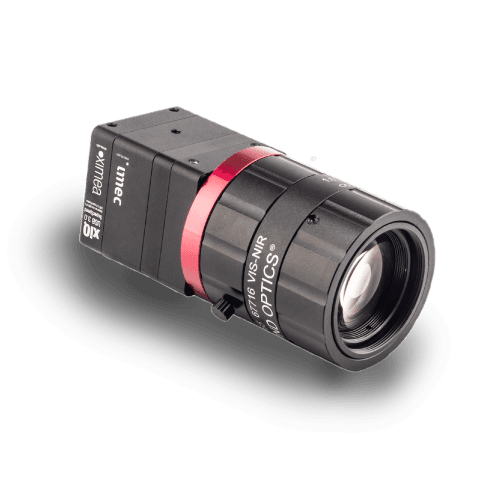

XIMEA SNAPSHOT NIR

Want to test hyperspectral scanning and analysis in the near-infrared range? With this user-friendly USB 3.0 camera from XIMEA, integrating the imec hyperspectral sensor, you’ll be looking at relevant test data within a few minutes after the installation.

Request your demo

image acquision

real-time

spatial resolution

2 Mpx

spectral resolution

24 bands

spectral range

660-980 nm

cube acquisition speed

up to 120/second

Make artifact-free cubes of moving objects thanks to video-rate acquisition.

Enjoy an easy set-up of a system that includes imager, camera and software.

Use this compact and light-weight camera wherever you want.

This complete evaluation kit includes, besides the camera, all required accessories, lens recommendations, an optional evaluation setup, acquisition and analysis software, manuals and remote support – from basic help to tailored application support.

The XIMEA SNAPSHOT NIR is ideal for applications such as:

  • optical sorting in machine vision
  • chemical analysis of material composition
  • food safety and inspection
  • medical & healthcare
  • pharmaceutical manufacturing
  • semiconductor & photovoltaic
  • waste recycling
  • human machine interface
  • minerology & mining
  • precision agriculture
  • security & surveillance

spatial resolution

2035 x 1075

spectral resolution

24 bands

spectral range

660-980 nm (NIR)

imager type

CMOS imager, CMOSIS CMV2000-based

acquisition speed

up to 120 hyperspectral cubes/second (limit of USB 3.0 interface)

pixel pitch

5.5 μm pixels, 2/3’’ sensor optical format

bit depth

8 or 10 bits

camera interface

USB 3.0 + GPIO + I/O for triggering

acquisition modes

HDR modes (dual or multi-exposures for best SNR per band channel)

power consumption

1.6 Watt

camera dimensions (W x H x D)

26 x 26 x 31 mm

camera weight

32 g without optics

software

HSI MOSAIC software for raw image acquisition, data pre-processing, hypercube visualization and classification, including API

rejection filter

yes

included accessories

USB 3.0 and trigger cables
