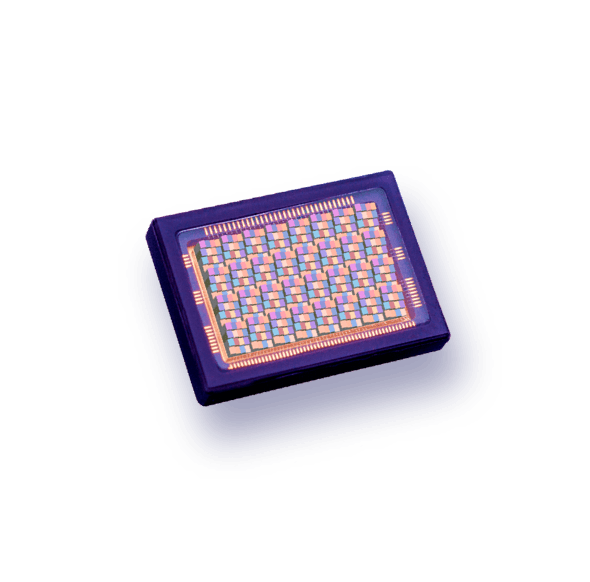

Snapshot SSM5X5 NIR spectral sensor chip

Imec’s Snapshot NIR sensor captures snapshot and videoe spectral data in the near-infrared range.

spectral range

665 – 960 nm

spectral resolution

24 bands

spatial resolution

2048 x 1088 pixels

frame rate

up to 340 FPS at 10 bits in full resolution

Applications

robotics, handhelds and remote sensing
in-field anomaly detection
security & surveillance
precision agriculture
waste management
sorting and recycling
food inspection
process monitoring
environment sensing
microscopy
robotic surgery
minimal invasive surgery

Sensor specs

sensor part number

360-0001-01

bandpass filter type:

round glass designed for in-camera integration

diameter: 25 mm
thickness: 1 mm

spectral range

665 – 960 nm

spectral resolution

24 bands

spatial resolution

2048 x 1088 pixels

frame rate

up to 340 FPS at 10 bits in full resolution

pixel pitch

5.5 µm

bit depth

8 or 10 bit

base imager

AMS CMV2000

Central wavelengths

668.7, 686.8, 700.1, 711.6, 728.0, 739.2, 752.3, 767.3, 780.7, 789.4, 804.5, 815.3, 828.3, 843.4, 852.9, 865.1, 879.4, 891.6, 899.8, 912.8, 922.2, 931.9, 942.4, 951.4

Max. avg. rel. deviation

± 0.8%

Max. rel. single band deviation

± 1.0%

Spectral cube resolution

2035 x 1075 x 24

Our standard sensor chips have not been designed for space applications and did not pass a complete space-qualification process according to f.i. ESCC specification. Contact us for custom sensor development with your specific qualification needs for use in space (export control license requirements may apply).
