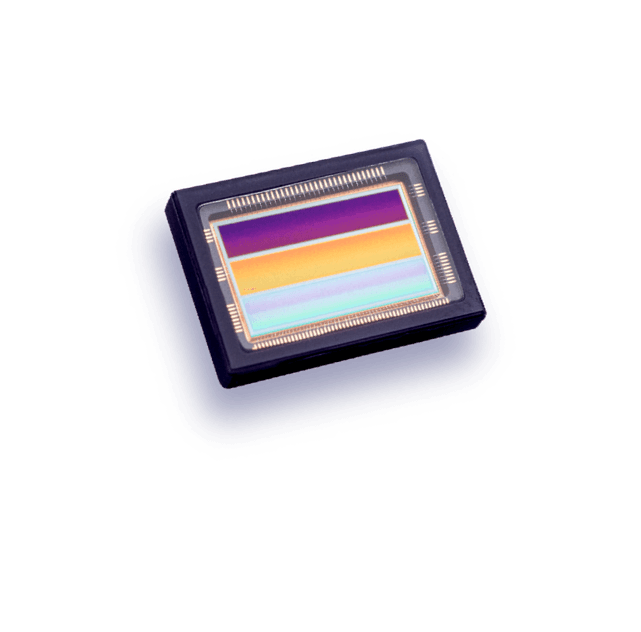

Linescan LS96 VNIR spectral sensor chip
Imec’s Linescan VNIR sensor acquires images with high spatial and spectral resolutions at high scanning rate.
spectral range
450 – 900 nm
spectral resolution
96 bands
spatial resolution
2048 x 1088 pixels
frame rate
up to 340 FPS
Applications
- earth observation
- precision agriculture
- security and surveillance
- food inspection
- mineral & material characterization
- digital microscopy for pathology
- cytogenetics & histology
- wound monitoring & diagnostics
- art & heritage analysis
- general application research for hyperspectral imaging in the lab
sensor part number
360-0012-01
bandpass filter type
round glass designed for in-camera integration
diameter
25 mm
thickness
0.7 mm
spectral range
450 – 900 nm
spectral resolution
96 bands
spatial resolution
2048 x 1088 pixels
frame rate
up to 340 FPS
pixel pitch
5.5 µm
bit depth
8 or 10 bit
base imager
AMS CMV2000
Our standard sensor chips have not been designed for space applications and did not pass a complete space-qualification process according to f.i. ESCC specification. Contact us for custom sensor development with your specific qualification needs for use in space (export control license requirements may apply).
